Metal stair treads – anti-slip grating treads

The stair tread is the most worn and the most dangerous part of a staircase. People stand on it with wet and dirty footwear. A grating tread solves both problems: water, snow and dirt fall through, the front edge is serrated, and no slippery layer builds up.

The catalogue has treads for straight stairs and treads for spiral stairs, whose width changes along the tread. They are made of the same welded grating (SP) as the gratings, but with a reinforced anti-slip front edge and fixing angles.

Treads can also be ordered to your own measurements.

Request a quote

Send a price request with the dimensions and the quantity, and we will answer with a firm quote.

Send the request +372 5620 7771

Products: 61
Cut to size: Yes

Sideplate dimensions

The sideplate welded to the end of the tread is what fixes the tread to the stair. A standard tread has a rectangular DIN-type plate; a FIN-type tread has a plate with chamfered ends and different hole positions.

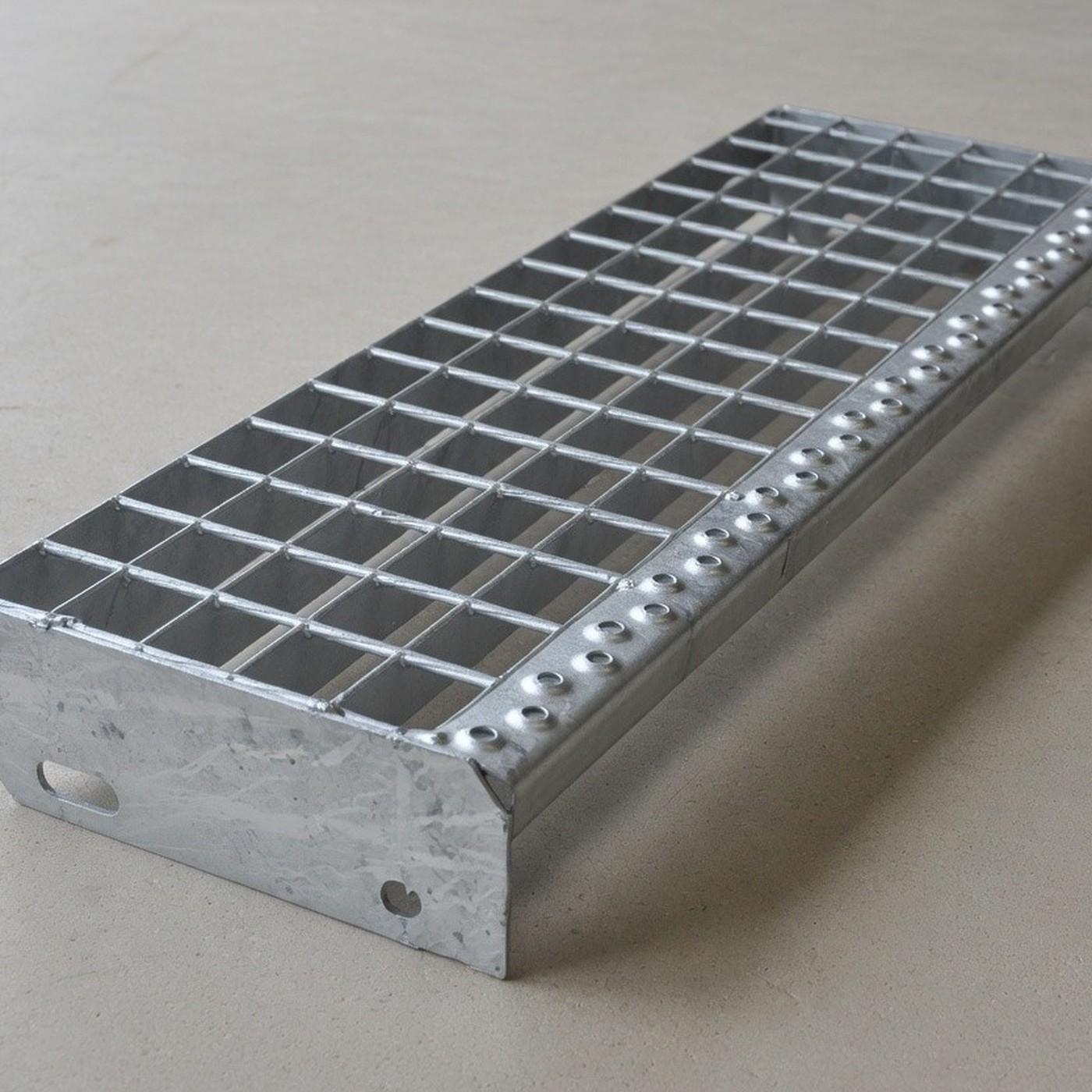

Standard tread

Sideplate dimensions hold for treads of different lengths. Hole positions do not depend on tread length L.

Tread depth B

DIN-type sideplate dimensions in millimetres, by tread depth B
B ± 3	a	b	c	d	e	f
200	30	55	70	100	65	30
240	30	55	70	120	85	30
270	30	55	70	150	85	30
305	30	55	70	180	90	30

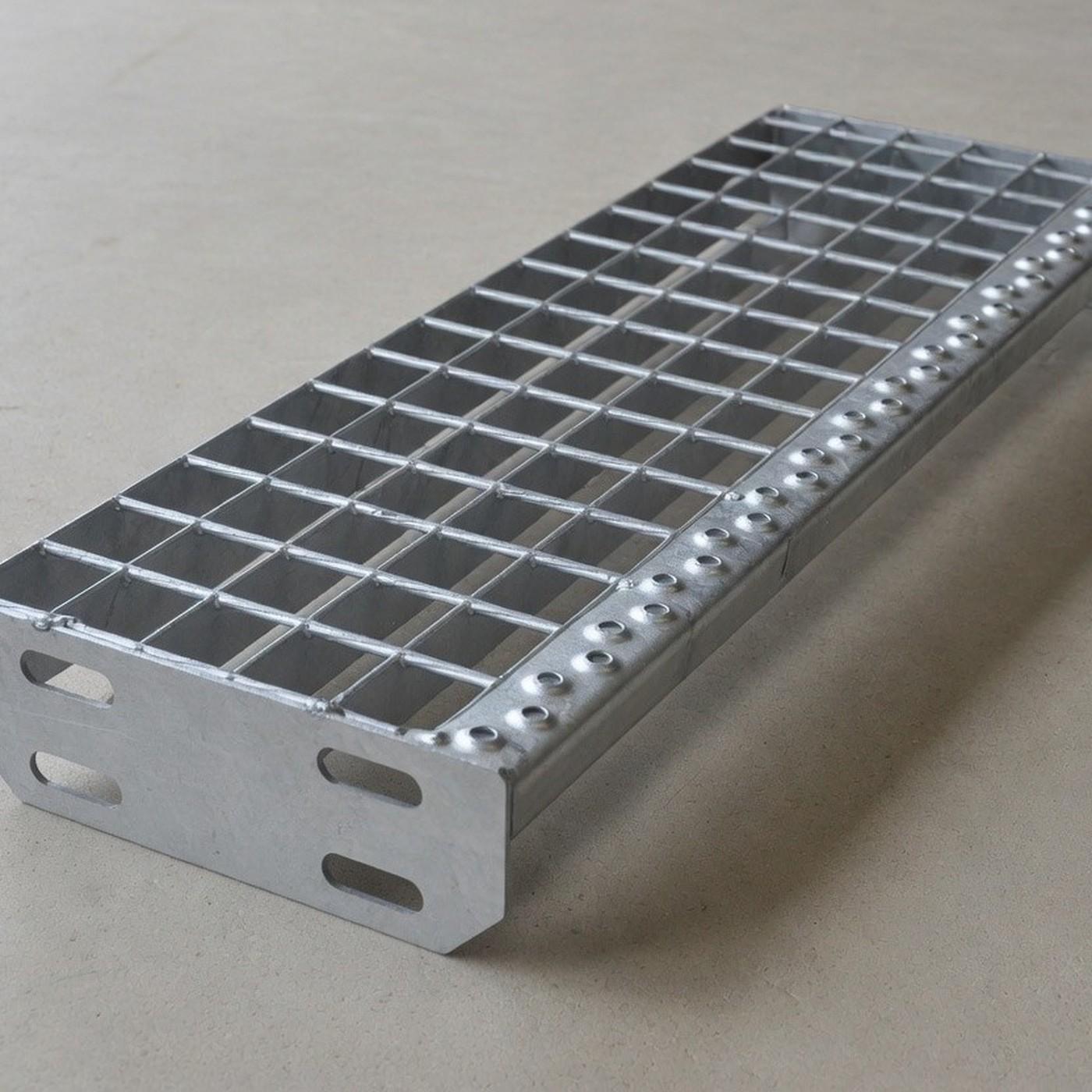

FIN-type tread

A FIN-type sideplate is not a DIN-type plate. Plate height is 45 mm on treads up to 900 mm long, and 55 mm from 1000 mm.

Tread depth D

Tread length L

FIN-type sideplate dimensions in millimetres, by tread depth D
D	A	k	m	n	p
130	33	40	15	25	50
160	55	36	39	35	50
200	83	50	35	65	50
230	95	60	50	70	50
260	101	80	58	72	50
300	133	100	35	115	50

Dimensions according to the manufacturer's drawings. A FIN-type sideplate is not a DIN-type plate. State the stringer type in the request so we can allow for the fixing.

Download the drawings as PDF

All products

61 products

Product list with dimensions and material
Product	Mesh size	Size	Bearing bar
Galvanized stairtread for spiral stairs SP 34×38/30×3 Mesh size: 34 × 38 mm Size: 800 × 358 mm Bearing bar: 30 × 3 mm	34 × 38 mm	800 × 358 mm	30 × 3 mm
Galvanized stairtread for spiral stairs SP 34×38/30×3 Mesh size: 34 × 38 mm Size: 900 × 391 mm Bearing bar: 30 × 3 mm	34 × 38 mm	900 × 391 mm	30 × 3 mm
Galvanized stairtread for spiral stairs SP 34×38/30×3 Mesh size: 34 × 38 mm Size: 1000 × 424 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1000 × 424 mm	30 × 3 mm
Galvanized stairtread for spiral stairs SP 34×38/30×3 Mesh size: 34 × 38 mm Size: 1100 × 457 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1100 × 457 mm	30 × 3 mm
Galvanized stairtread for spiral stairs SP 34×38/30×3 Mesh size: 34 × 38 mm Size: 1200 × 500 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1200 × 500 mm	30 × 3 mm
Stainless steel AISI304 stairtread SP Mesh size: 34 × 76 mm Size: 600 × 200 mm Bearing bar: 30 × 2 mm	34 × 76 mm	600 × 200 mm	30 × 2 mm
Stainless steel AISI304 stairtread SP Mesh size: 34 × 76 mm Size: 800 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	800 × 230 mm	30 × 2 mm
Galvanized steel stairtread SP S4 Mesh size: 22 × 38 mm Size: 600 × 160 mm Bearing bar: 30 × 2 mm	22 × 38 mm	600 × 160 mm	30 × 2 mm
Galvanized steel stairtread SP S4 Mesh size: 22 × 38 mm Size: 500 × 160 mm Bearing bar: 30 × 2 mm	22 × 38 mm	500 × 160 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 600 × 200 mm Bearing bar: 30 × 2 mm	34 × 38 mm	600 × 200 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 600 × 240 mm Bearing bar: 30 × 2 mm	34 × 38 mm	600 × 240 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 600 × 270 mm Bearing bar: 30 × 2 mm	34 × 38 mm	600 × 270 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 700 × 200 mm Bearing bar: 30 × 2 mm	34 × 38 mm	700 × 200 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 700 × 240 mm Bearing bar: 30 × 2 mm	34 × 38 mm	700 × 240 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 700 × 270 mm Bearing bar: 30 × 2 mm	34 × 38 mm	700 × 270 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 800 × 200 mm Bearing bar: 30 × 2 mm	34 × 38 mm	800 × 200 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 800 × 240 mm Bearing bar: 30 × 2 mm	34 × 38 mm	800 × 240 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 800 × 270 mm Bearing bar: 30 × 2 mm	34 × 38 mm	800 × 270 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 900 × 240 mm Bearing bar: 30 × 2 mm	34 × 38 mm	900 × 240 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 900 × 270 mm Bearing bar: 30 × 2 mm	34 × 38 mm	900 × 270 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 900 × 305 mm Bearing bar: 30 × 2 mm	34 × 38 mm	900 × 305 mm	30 × 2 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 1000 × 240 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1000 × 240 mm	30 × 3 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 1000 × 270 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1000 × 270 mm	30 × 3 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 1000 × 305 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1000 × 305 mm	30 × 3 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 1200 × 270 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1200 × 270 mm	30 × 3 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 1200 × 305 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1200 × 305 mm	30 × 3 mm
Galvanized steel stairtread SP Mesh size: 34 × 38 mm Size: 1000 × 270 mm Bearing bar: 30 × 2 mm	34 × 38 mm	1000 × 270 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 600 × 200 mm Bearing bar: 30 × 2 mm	34 × 76 mm	600 × 200 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 600 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	600 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 800 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	800 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 800 × 260 mm Bearing bar: 30 × 2 mm	34 × 76 mm	800 × 260 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 900 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	900 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 900 × 260 mm Bearing bar: 30 × 2 mm	34 × 76 mm	900 × 260 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 900 × 300 mm Bearing bar: 30 × 2 mm	34 × 76 mm	900 × 300 mm	30 × 2 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 1000 × 260 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1000 × 260 mm	30 × 3 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 1000 × 300 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1000 × 300 mm	30 × 3 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 1200 × 260 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1200 × 260 mm	30 × 3 mm
Galvanized steel stairtread FIN SP Mesh size: 34 × 76 mm Size: 1200 × 300 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1200 × 300 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 600 × 200 mm Bearing bar: 30 × 2 mm	34 × 76 mm	600 × 200 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 600 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	600 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 600 × 260 mm Bearing bar: 30 × 2 mm	34 × 76 mm	600 × 260 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 700 × 200 mm Bearing bar: 30 × 2 mm	34 × 76 mm	700 × 200 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 700 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	700 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 700 × 260 mm Bearing bar: 30 × 2 mm	34 × 76 mm	700 × 260 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 800 × 200 mm Bearing bar: 30 × 2 mm	34 × 76 mm	800 × 200 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 800 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	800 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 800 × 260 mm Bearing bar: 30 × 2 mm	34 × 76 mm	800 × 260 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 900 × 230 mm Bearing bar: 30 × 2 mm	34 × 76 mm	900 × 230 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 900 × 260 mm Bearing bar: 30 × 2 mm	34 × 76 mm	900 × 260 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 900 × 300 mm Bearing bar: 30 × 2 mm	34 × 76 mm	900 × 300 mm	30 × 2 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1000 × 230 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1000 × 230 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1000 × 260 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1000 × 260 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1000 × 300 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1000 × 300 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1100 × 260 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1100 × 260 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1100 × 300 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1100 × 300 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1200 × 260 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1200 × 260 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1200 × 300 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1200 × 300 mm	30 × 3 mm
Galvanized steel stairtread FIN SP S5 Mesh size: 34 × 76 mm Size: 1200 × 390 mm Bearing bar: 30 × 3 mm	34 × 76 mm	1200 × 390 mm	30 × 3 mm
Black stairtread for vertical stairs	–	–	–
Black stairtread for vertical stairs	–	–	–

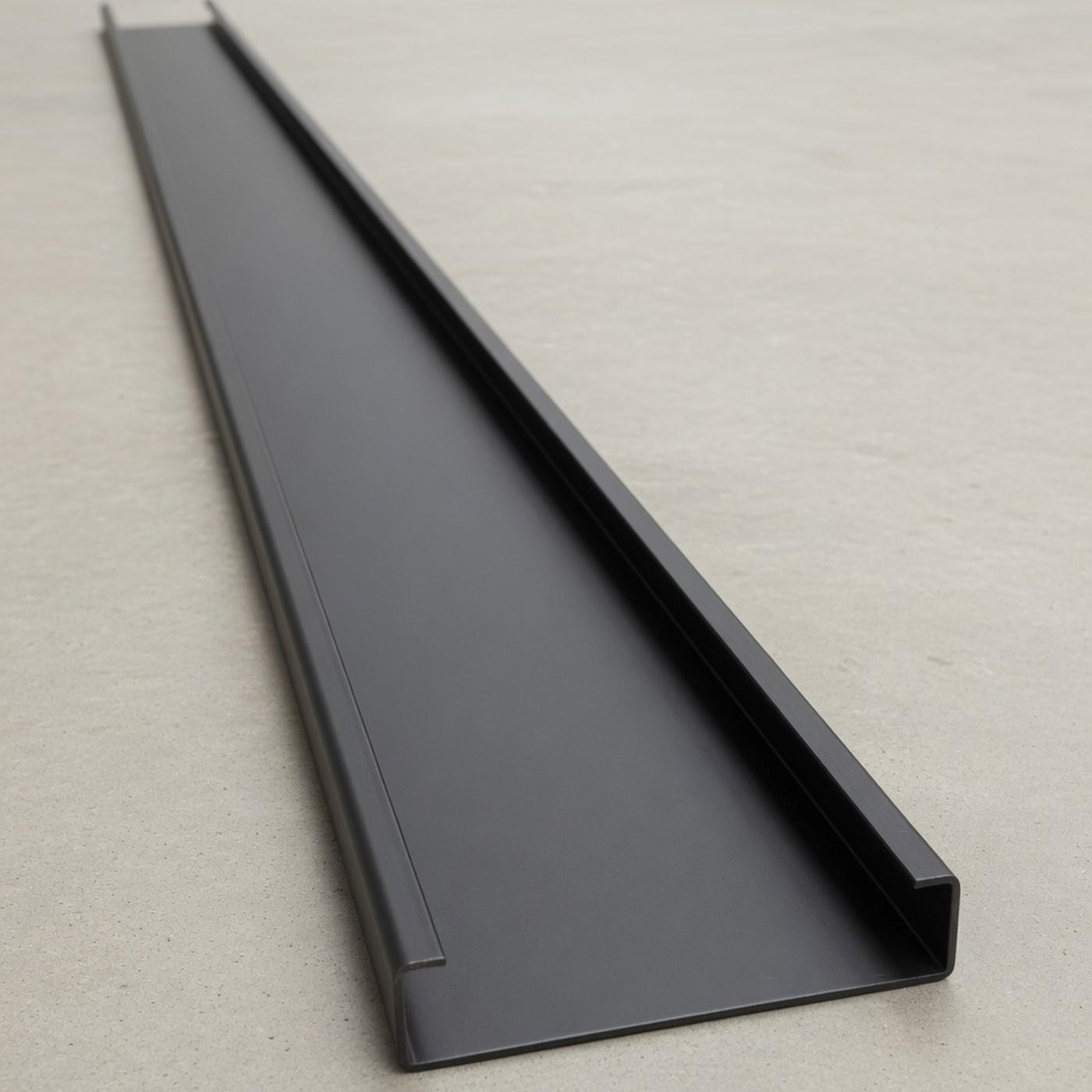

C-profile – black	–	–	–

Where it is used

External stairs

Building exterior stairs, loading platform stairs and escape stairs, where snow and ice would gather on a plain tread in winter.

Industrial stairs and platforms

Maintenance stairs to machinery, roof access stairs and approaches to process platforms.

Spiral stairs

A way to move vertically in a tight space. The treads are wedge-shaped and fix to a central post.

How to choose

SP: A tread made of welded grating, the same construction as the gratings.

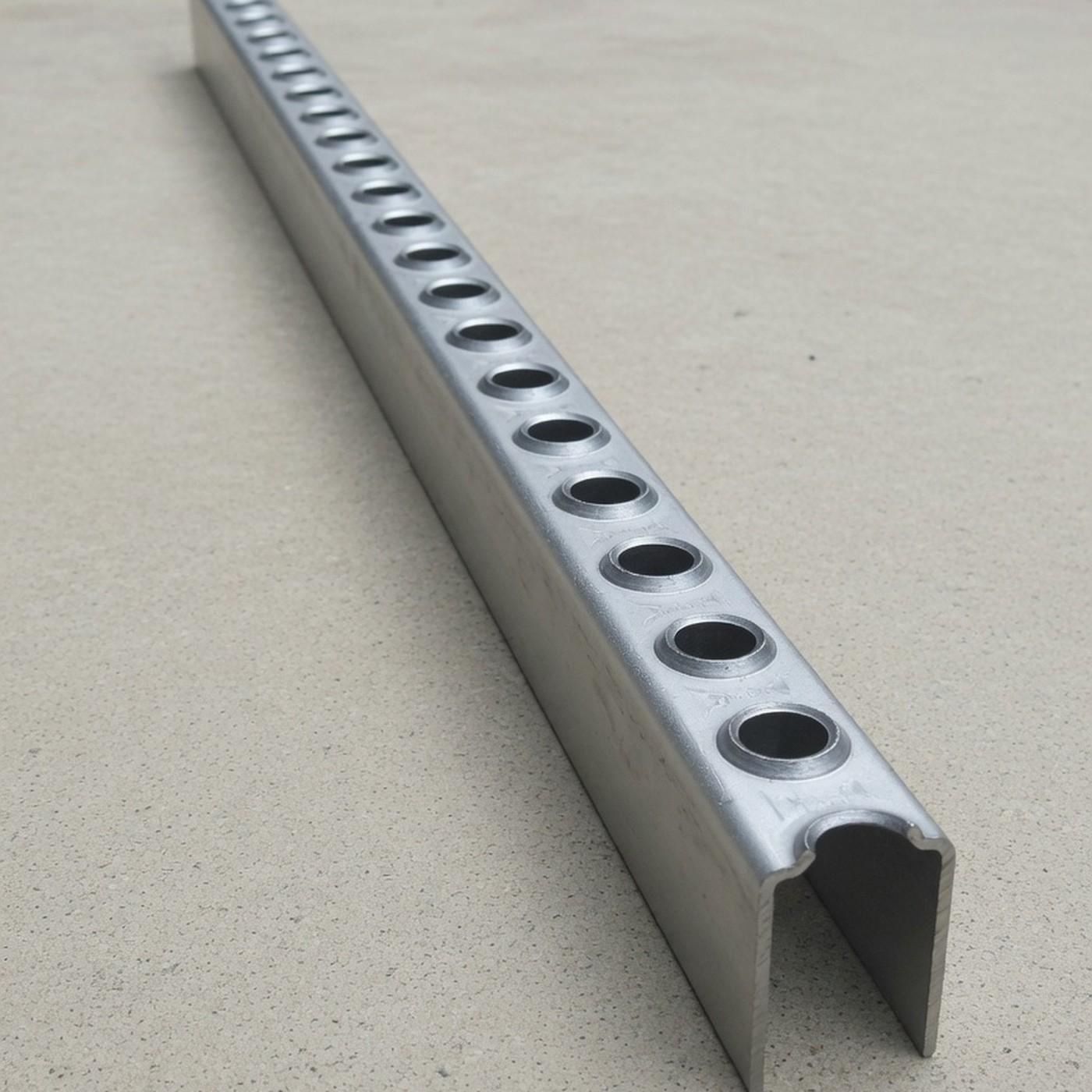

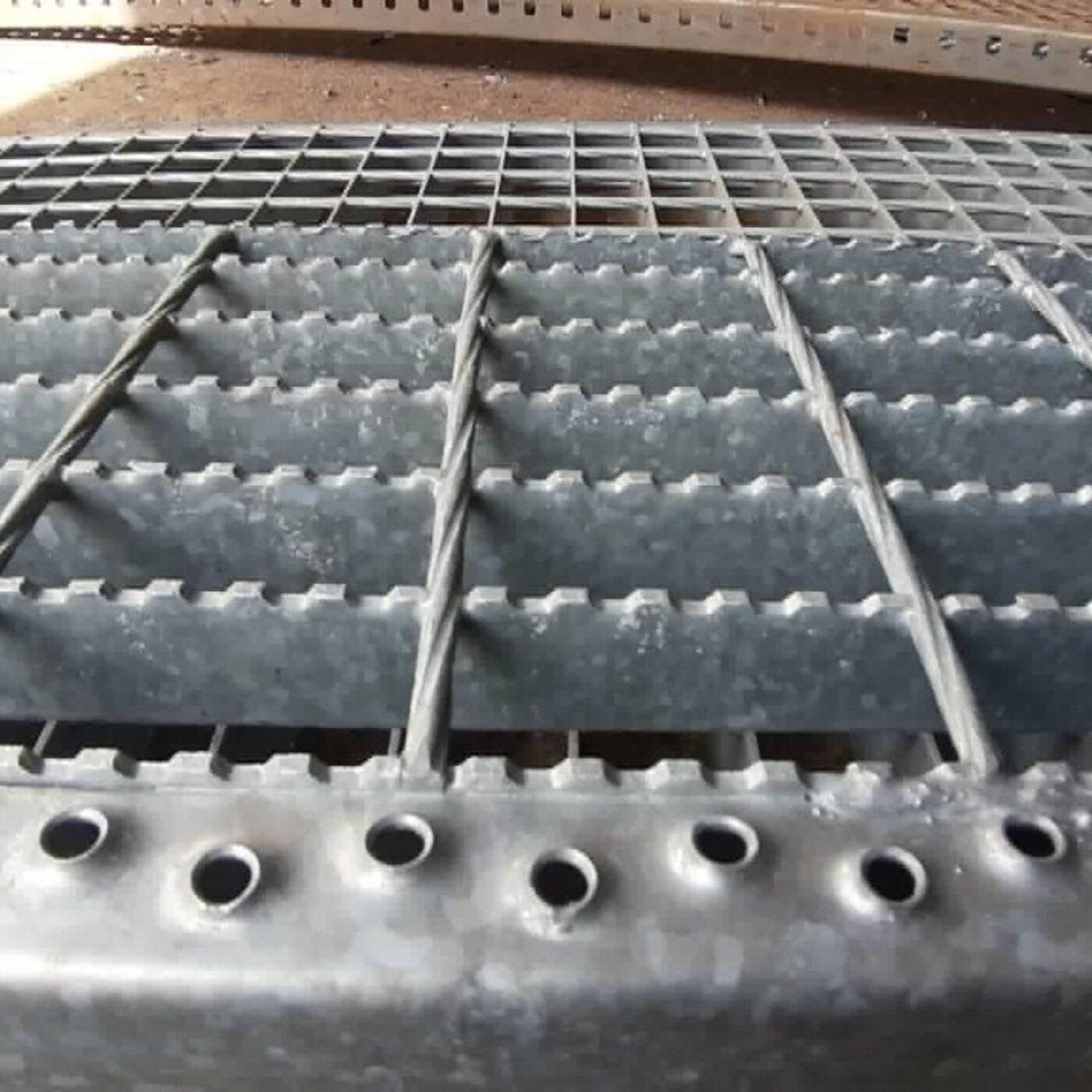

Serrated: The front edge is toothed, so footwear does not slip.

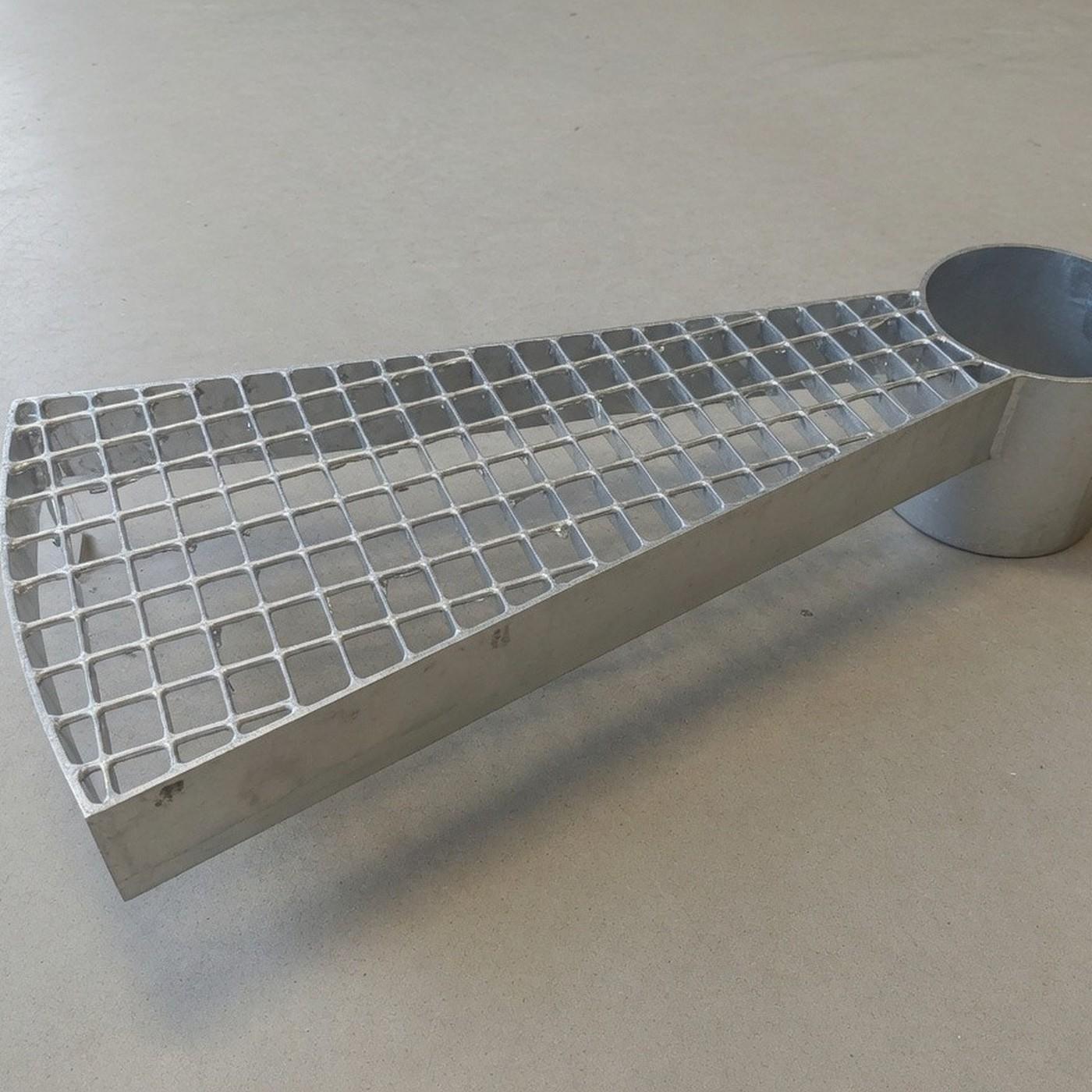

Spiral stair tread: A wedge-shaped tread whose width changes along its length.
FIN: A Finnish-type tread. The sideplate has chamfered ends and is not a DIN-type plate.

Front edge type

A serrated front edge grips better and is required on most industrial sites. A plain front edge suits a dry indoor setting.

Tread size

The length of the tread is the width of the stair; the depth is usually 200–400 mm. A spiral stair tread has two widths: a narrower inner and a wider outer end.

Load capacity

As with gratings, the bearing bar dimension sets the capacity. The span on a stair tread is normally short, so a 30 × 2 or 30 × 3 mm bar is usually enough.

Frequently asked questions

What is the difference between a serrated and a plain tread?

A serrated front edge grips markedly better with wet or dirty footwear. On an external stair and in industry, always choose serrated.

Are there treads for spiral stairs?

Yes, the catalogue has separate spiral stair treads whose width changes along the tread. We need the diameter of the stair and the number of treads per turn.

How does the tread fix to the stair?

The sideplates welded to the ends have holes for fixing bolts. A standard tread has a rectangular DIN-type plate; a FIN-type tread has a chamfered plate with different hole positions. Open the drawings next to the quote request and pick the tread depth. State the stringer type in the request.

Related categories

Didn't find the size you need?

The catalogue shows what we keep in stock. We cut to size, and we also order in what is not on the list. Write and tell us what you need.
