Steel gratings and grating floors from Pärnu

A steel grating is a load-bearing floor element made of bearing bars joined crosswise by transverse rods. It carries load, lets water, light and air through, and collects no dirt on its surface. That is why it is used wherever a plain sheet cover would turn slippery or hold water.

The catalogue is mainly welded gratings of the SP type, where the bearing bars are welded to the cross rods. The standard size is 1000 × 1000 mm, and panels of 3050 × 1000 and 6100 × 1000 mm are also available. The material is either hot-dip galvanized black steel or stainless steel AISI 304 and AISI 316.

Every grating can be cut to the size you need. We also make them to your own measurements and drawings.

Request a quote

Send a price request with the dimensions and the quantity, and we will answer with a firm quote.

Send the request +372 5620 7771

Products: 96
Cut to size: Yes

Load table

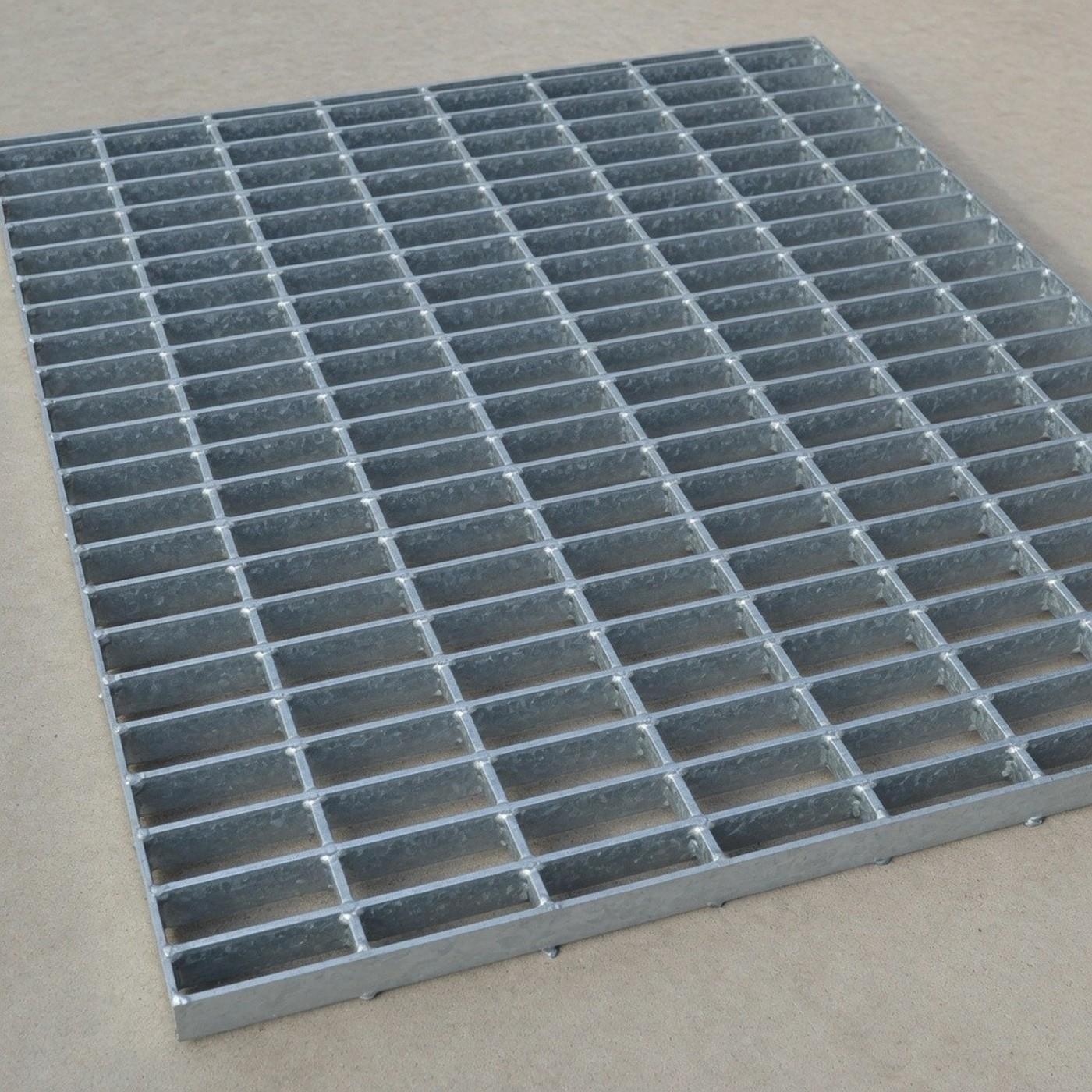

Hot-dip galvanized welded grating · mesh 34 × 38 mm

Capacity depends on the bearing bar and on the span between supports. Pick a bar and a span: the table shows the uniformly distributed load (Fv) and the point load (Fp).

Bearing bar

Span

Fv: 1 152; daN/m² · uniformly distributed
Fp: 255; daN · point load on 200 × 200 mm
Self-weight: 28; kg/m²

1 daN ≈ 1 kg. Fv is per square metre, Fp is for one 200 × 200 mm patch.

Load table for hot-dip galvanized welded grating, mesh 34 × 38 mm, by bearing bar and span
Fv / Fp	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	kg/m²
Fv	3 072	2 133	1 567	1 200	984	768	635	533	454	392	341	300	266	237	213	192	174	159	145	133	123	20
Fp	258	206	172	148	129	115	103	94	86	80	74	69	64	61	58	54	52	49	47	45	43	20
Fv	3 195	2 219	1 630	1 248	986	799	660	555	473	408	355	312	276	247	221	200	181	165	151	139	128	18
Fp	267	213	178	152	133	119	106	97	89	82	76	72	67	63	60	56	54	51	49	46	44	18
Fv	4 792	3 328	2 445	1 872	1 479	1 188	990	832	709	611	532	468	415	370	332	300	272	248	226	208	192	24
Fp	400	320	267	229	200	178	161	146	133	123	115	107	100	94	89	84	80	76	73	70	67	24
Fv	6 390	4 437	3 260	2 498	1 972	1 597	1 320	1 109	945	815	710	624	553	493	443	399	362	330	302	277	256	32
Fp	534	427	358	306	267	237	214	194	178	165	153	142	133	125	119	112	107	102	97	93	89	32
Fv	7 987	5 547	4 075	3 120	2 465	1 997	1 650	1 387	1 182	1 019	887	780	691	616	553	499	453	413	377	347	319	38
Fp	667	534	445	381	334	297	267	243	222	206	191	178	167	157	148	140	133	127	121	117	112	38
Fv	4 608	3 200	2 351	1 800	1 422	1 152	952	800	682	588	512	450	399	356	319	288	261	238	218	200	184	20
Fp	382	306	255	218	191	168	153	139	127	118	109	102	96	90	85	80	76	73	70	67	64	20
Fv	4 608	3 200	2 351	1 800	1 422	1 152	952	800	682	588	512	450	399	356	319	288	261	238	218	200	184	28
Fp	573	458	382	327	287	255	229	209	191	178	164	153	143	135	127	120	115	109	104	100	96	28
Fv	9 216	6 400	4 702	3 600	2 844	2 304	1 904	1 600	1 383	1 176	1 024	900	797	711	638	576	522	478	436	400	369	37
Fp	784	611	509	439	382	340	306	278	255	235	218	204	191	180	169	161	153	148	139	133	127	37
Fv	11 520	8 000	5 878	4 500	3 556	2 880	2 380	2 000	1 704	1 489	1 280	1 125	997	889	798	720	653	595	544	500	461	45
Fp	956	764	636	545	478	425	382	348	319	294	273	255	239	225	213	201	191	182	173	167	160	45
Fv	12 533	8 704	6 394	4 896	3 868	3 133	2 586	2 198	1 854	1 598	1 392	1 224	1 084	967	868	783	710	647	592	544	501	42
Fp	1 030	824	686	588	515	457	412	374	343	317	294	274	257	242	229	216	206	196	187	179	171	42
Fv	15 687	10 880	7 993	6 120	4 835	3 918	3 337	2 720	2 317	1 998	1 740	1 530	1 355	1 208	1 085	979	888	809	740	680	626	52
Fp	1 287	1 030	858	735	643	572	515	468	429	396	367	343	322	303	286	271	257	245	234	224	214	52
Fv	8 187	5 685	4 177	3 198	2 527	2 047	1 682	1 421	1 211	1 044	910	800	708	632	567	512	464	423	387	355	327	26
Fp	667	534	445	382	334	297	267	243	222	206	191	178	167	159	149	141	133	127	121	117	112	26
Fv	12 288	8 533	6 260	4 800	3 793	3 072	2 539	2 133	1 818	1 567	1 365	1 200	1 063	948	851	768	697	635	581	533	492	36
Fp	1 002	802	669	573	501	445	401	364	334	308	287	267	251	238	223	211	201	191	182	174	167	36
Fv	16 374	11 371	8 354	6 396	5 054	4 083	3 383	2 843	2 422	2 088	1 819	1 599	1 416	1 263	1 134	1 023	928	848	774	711	655	48
Fp	1 335	1 069	891	763	668	593	534	486	445	411	382	356	334	314	297	281	267	255	243	232	222	48
Fv	20 475	14 219	10 446	7 998	6 319	5 119	4 230	3 555	3 029	2 612	2 275	2 000	1 771	1 580	1 418	1 280	1 161	1 058	968	889	819	58
Fp	1 670	1 336	1 113	954	835	742	682	607	557	514	477	445	418	393	371	351	334	318	303	291	278	58
Fv	19 200	13 333	9 796	7 500	5 926	4 800	3 997	3 333	2 840	2 449	2 133	1 875	1 661	1 481	1 330	1 200	1 088	992	907	833	768	44
Fp	1 542	1 234	1 028	882	771	685	630	561	514	475	440	411	386	363	343	325	308	294	281	268	257	44
Fv	25 590	17 771	13 056	9 996	7 898	6 397	5 287	4 443	3 785	3 264	2 843	2 499	2 214	1 975	1 772	1 599	1 451	1 322	1 209	1 111	1 024	58
Fp	2 055	1 644	1 370	1 174	1 027	914	840	745	685	632	587	548	514	483	457	433	411	391	374	357	343	58
Fv	31 995	22 219	16 324	12 498	9 875	7 999	6 611	5 555	4 733	4 081	3 555	3 125	2 768	2 469	2 218	2 000	1 814	1 653	1 512	1 389	1 280	72
Fp	2 569	2 056	1 713	1 469	1 285	1 142	1 050	934	856	791	734	685	643	606	571	541	514	489	466	447	429	72
Fv	38 400	26 667	19 592	15 000	11 852	9 600	7 934	6 667	5 680	4 898	4 267	3 750	3 322	2 963	2 659	2 400	2 177	1 983	1 815	1 667	1 536	86
Fp	3 084	2 467	2 056	1 762	1 542	1 371	1 234	1 121	1 028	949	881	822	771	726	685	649	617	587	561	536	514	86
Fv	36 964	25 600	18 808	14 400	11 378	9 216	7 617	6 400	5 453	4 702	4 096	3 600	3 189	2 844	2 553	2 304	2 090	1 904	1 742	1 600	1 475	69
Fp	2 911	2 329	1 941	1 664	1 455	1 294	1 190	1 058	970	896	831	777	728	685	647	613	582	555	529	507	485	69
Fv	46 080	32 000	23 510	18 000	14 222	11 520	9 521	8 000	6 817	5 878	5 120	4 500	3 986	3 556	3 191	2 880	2 612	2 380	2 178	2 000	1 843	85
Fp	3 638	2 911	2 426	2 079	1 819	1 617	1 488	1 323	1 212	1 120	1 039	970	910	858	809	766	728	694	661	633	608	85
Fv	55 296	38 400	28 212	21 600	17 067	13 824	11 425	9 600	8 180	7 053	6 144	5 400	4 783	4 267	3 829	3 456	3 135	2 856	2 613	2 400	2 212	102
Fp	4 366	3 493	2 911	2 495	2 183	1 940	1 746	1 588	1 455	1 343	1 247	1 164	1 092	1 027	970	919	873	832	794	759	728	102

Values according to the manufacturer. Actual capacity depends on the support, the fixings and the environment. For a critical application, state the load and the span in the request and we will help you choose.

Download the table as PDF

All products

96 products

Product list with dimensions and material
Product	Mesh size	Size	Bearing bar

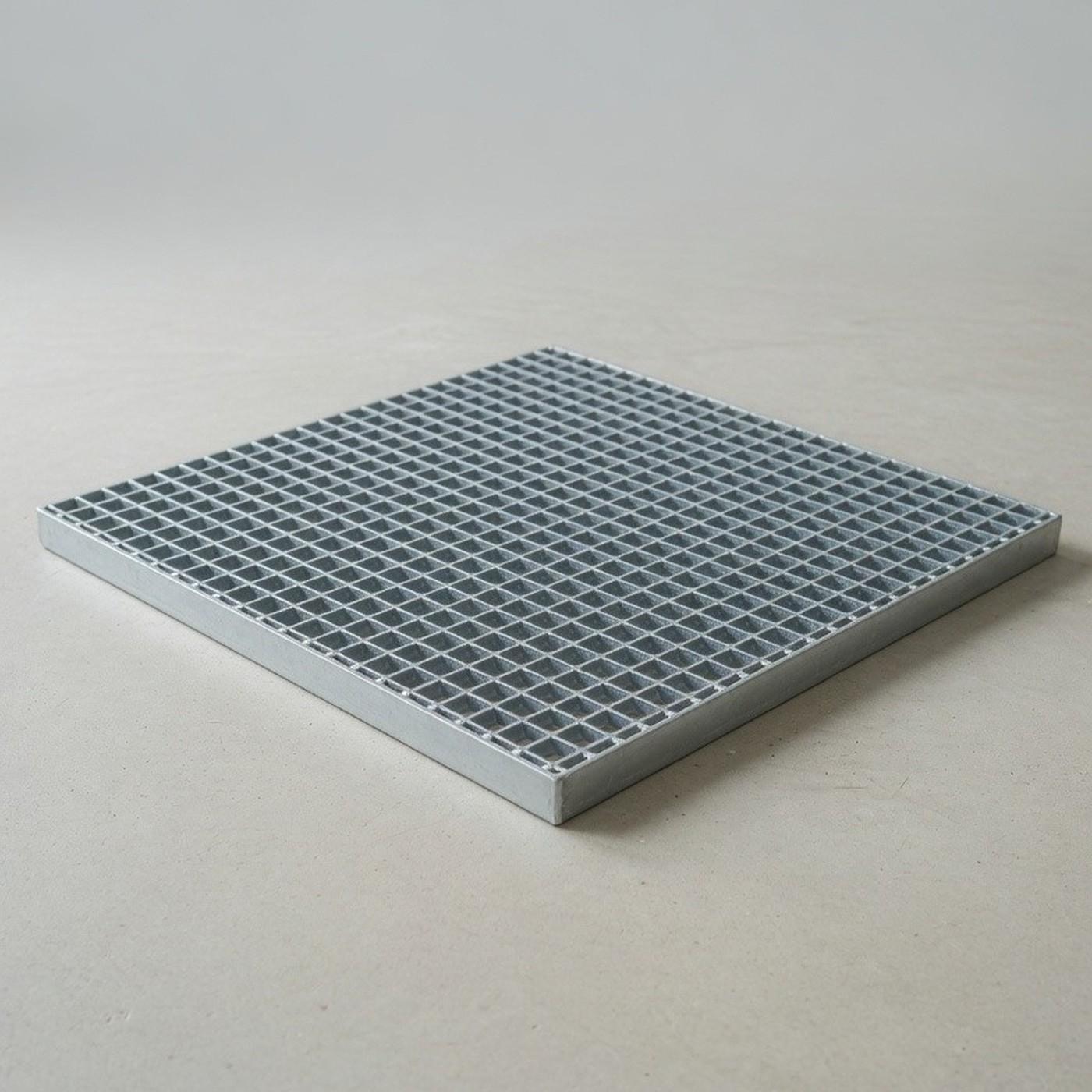

Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 25 × 3 mm	34 × 38 mm	1000 × 1000 mm	25 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 30 × 2 mm	34 × 38 mm	1000 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 30 × 3 mm	34 × 38 mm	1000 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 40 × 3 mm	34 × 38 mm	1000 × 1000 mm	40 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 40 × 4 mm	34 × 38 mm	1000 × 1000 mm	40 × 4 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 50 × 3 mm	34 × 38 mm	1000 × 1000 mm	50 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 50 × 4 mm	34 × 38 mm	1000 × 1000 mm	50 × 4 mm

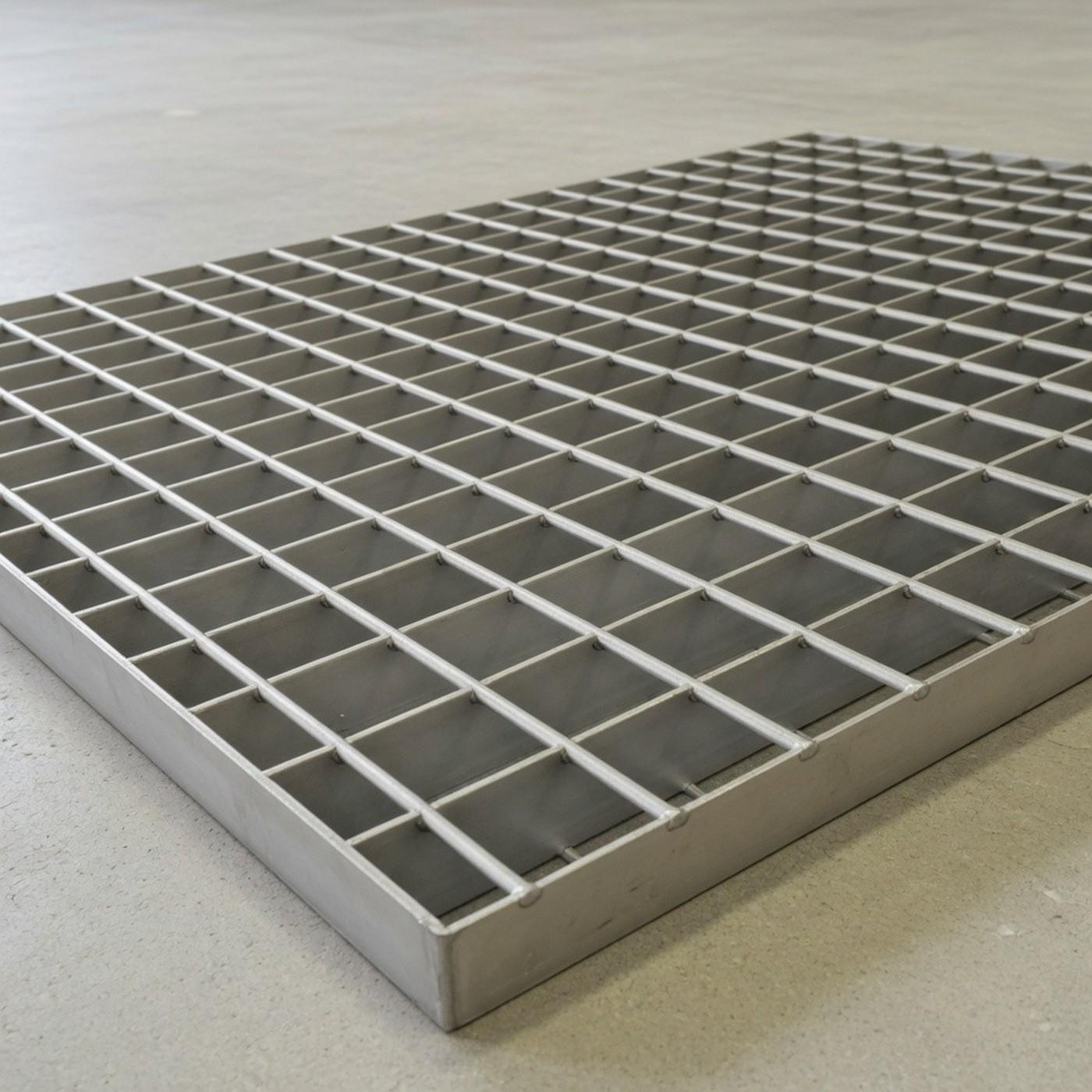

Stainless steel (AISI 304) welded steel grating SP Mesh size: 34 × 38 mm Size: 1000 × 1000 mm Bearing bar: 30 × 2 mm	34 × 38 mm	1000 × 1000 mm	30 × 2 mm
Stainless steel (AISI 304) welded steel grating SP Mesh size: 34 × 76 mm Size: 3000 × 1000 mm Bearing bar: 30 × 2 mm	34 × 76 mm	3000 × 1000 mm	30 × 2 mm
Stainless steel (AISI 304) welded steel grating SP Mesh size: 34 × 76 mm Size: 3000 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	3000 × 1000 mm	30 × 3 mm
Stainless steel (AISI 304) welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 3000 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	3000 × 1000 mm	30 × 3 mm
Stainless steel (AISI 316) welded steel grating SP Mesh size: 34 × 76 mm Size: 3000 × 1000 mm Bearing bar: 30 × 2 mm	34 × 76 mm	3000 × 1000 mm	30 × 2 mm
Stainless steel (AISI 316) welded steel grating SP Mesh size: 34 × 76 mm Size: 3000 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	3000 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 3050 × 1000 mm Bearing bar: 30 × 2 mm	34 × 38 mm	3050 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 3050 × 1000 mm Bearing bar: 30 × 3 mm	34 × 38 mm	3050 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 76 mm Size: 3050 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	3050 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 3050 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	3050 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 3050 × 1000 mm Bearing bar: 40 × 3 mm	34 × 38 mm	3050 × 1000 mm	40 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	34 × 38 mm	6100 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 25 × 3 mm	34 × 38 mm	6100 × 1000 mm	25 × 3 mm
Galvanized welded steel grating SP Mesh size: 22 × 76 mm Size: 6100 × 1000 mm Bearing bar: 25 × 2 mm	22 × 76 mm	6100 × 1000 mm	25 × 2 mm
Galvanized welded steel grating SP Mesh size: 22 × 76 mm Size: 6100 × 1000 mm Bearing bar: 25 × 3 mm	22 × 76 mm	6100 × 1000 mm	25 × 3 mm
Galvanized welded steel grating SP S5 Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 25 × 3 mm	34 × 38 mm	6100 × 1000 mm	25 × 3 mm
Galvanized welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 25 × 3 mm	34 × 76 mm	6100 × 1000 mm	25 × 3 mm
Galvanized welded steel grating SP S4 Mesh size: 22 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	22 × 38 mm	6100 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	34 × 76 mm	6100 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	6100 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1200 mm Bearing bar: 30 × 3 mm	34 × 76 mm	6100 × 1200 mm	30 × 3 mm
Galvanized welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	6100 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 38 mm	6100 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1200 mm Bearing bar: 30 × 3 mm	34 × 38 mm	6100 × 1200 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 4 mm	34 × 38 mm	6100 × 1000 mm	30 × 4 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 40 × 4 mm	34 × 38 mm	6100 × 1000 mm	40 × 4 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 40 × 3 mm	34 × 38 mm	6100 × 1000 mm	40 × 3 mm
Galvanized welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 40 × 3 mm	34 × 76 mm	6100 × 1000 mm	40 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 40 × 3 mm	34 × 76 mm	6100 × 1000 mm	40 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 50 × 3 mm	34 × 38 mm	6100 × 1000 mm	50 × 3 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 50 × 4 mm	34 × 38 mm	6100 × 1000 mm	50 × 4 mm
Galvanized welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 60 × 4 mm	34 × 38 mm	6100 × 1000 mm	60 × 4 mm
Galvanized welded steel grating SP S5 Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 38 mm	6100 × 1000 mm	30 × 3 mm
Galvanized welded steel grating SP Mesh size: 15 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	15 × 76 mm	6100 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP S5 Mesh size: 15 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	15 × 76 mm	6100 × 1000 mm	30 × 2 mm
Galvanized welded steel grating SP S5 Mesh size: 15 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	15 × 76 mm	6100 × 1000 mm	30 × 3 mm

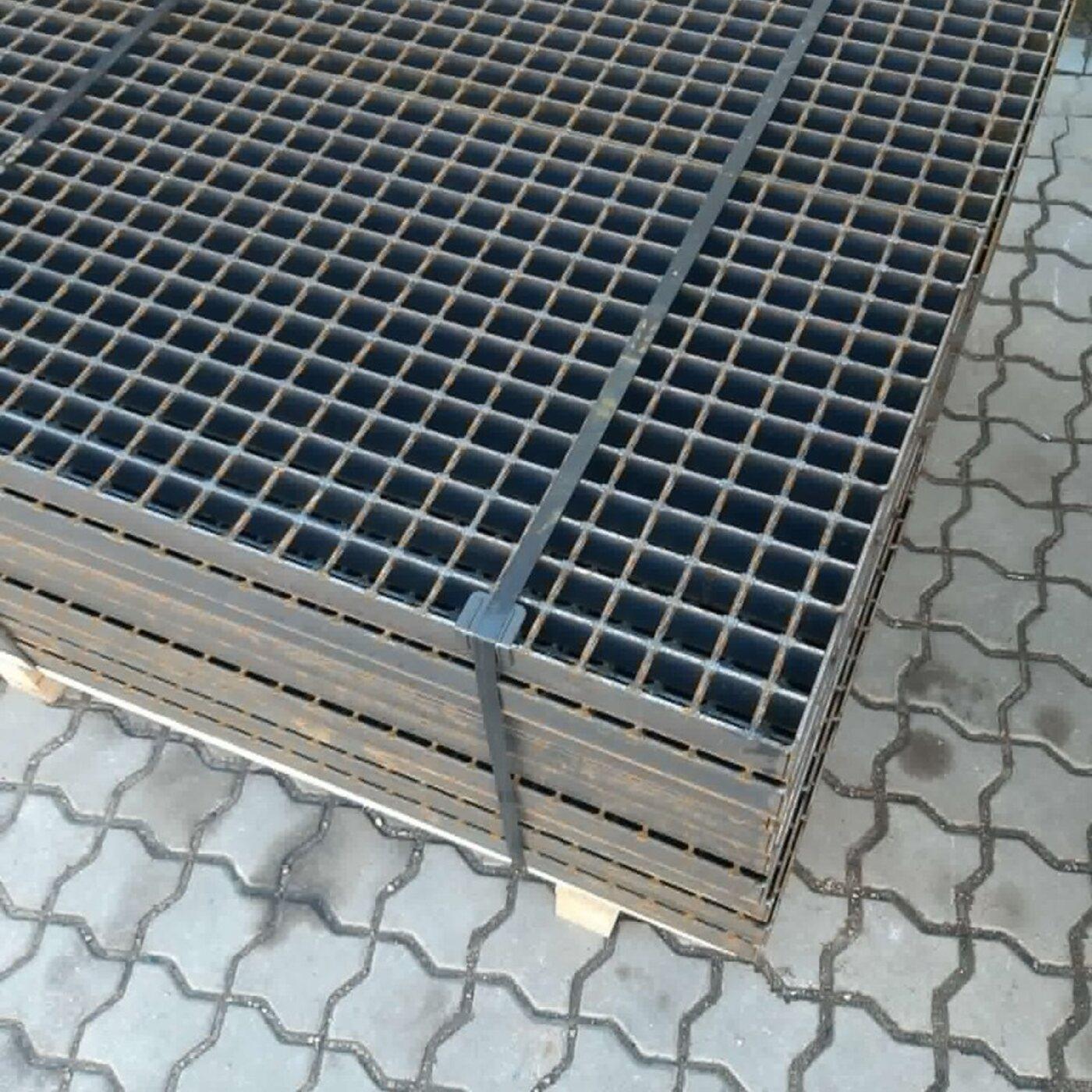

Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 25 × 3 mm	34 × 38 mm	6100 × 1000 mm	25 × 3 mm
Black welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 25 × 3 mm	34 × 76 mm	6100 × 1000 mm	25 × 3 mm
Black welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	34 × 76 mm	6100 × 1000 mm	30 × 2 mm
Black welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	6100 × 1000 mm	30 × 3 mm
Black welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 76 mm	6100 × 1000 mm	30 × 3 mm
Black welded steel grating SP Mesh size: 15 × 76 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	15 × 76 mm	6100 × 1000 mm	30 × 2 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 38 mm	6100 × 1000 mm	30 × 3 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1200 mm Bearing bar: 30 × 3 mm	34 × 38 mm	6100 × 1200 mm	30 × 3 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	34 × 38 mm	6100 × 1000 mm	30 × 2 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 4 mm	34 × 38 mm	6100 × 1000 mm	30 × 4 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 40 × 2 mm	34 × 38 mm	6100 × 1000 mm	40 × 2 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 40 × 3 mm	34 × 38 mm	6100 × 1000 mm	40 × 3 mm
Black welded steel grating SP Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 40 × 3 mm	34 × 76 mm	6100 × 1000 mm	40 × 3 mm
Black welded steel grating SP S5 Mesh size: 34 × 76 mm Size: 6100 × 1000 mm Bearing bar: 40 × 3 mm	34 × 76 mm	6100 × 1000 mm	40 × 3 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 40 × 4 mm	34 × 38 mm	6100 × 1000 mm	40 × 4 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 50 × 3 mm	34 × 38 mm	6100 × 1000 mm	50 × 3 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 50 × 4 mm	34 × 38 mm	6100 × 1000 mm	50 × 4 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 60 × 4 mm	34 × 38 mm	6100 × 1000 mm	60 × 4 mm
Black welded steel grating SP Mesh size: 34 × 38 mm Size: 3050 × 1000 mm Bearing bar: 80 × 5 mm	34 × 38 mm	3050 × 1000 mm	80 × 5 mm
Black welded steel grating SP S4 Mesh size: 22 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 2 mm	22 × 38 mm	6100 × 1000 mm	30 × 2 mm
Black welded steel grating SP S5 Mesh size: 34 × 38 mm Size: 6100 × 1000 mm Bearing bar: 30 × 3 mm	34 × 38 mm	6100 × 1000 mm	30 × 3 mm
Galvanized pressed steel grating Mesh size: 34 × 11 mm Size: 490 × 790 mm Bearing bar: 20 × 2 mm	34 × 11 mm	490 × 790 mm	20 × 2 mm
Galvanized pressed steel grating Mesh size: 34 × 11 mm Size: 1000 × 1000 mm Bearing bar: 25 × 2 mm	34 × 11 mm	1000 × 1000 mm	25 × 2 mm
Galvanized pressed steel grating Mesh size: 34 × 11 mm Size: 500 × 1000 mm Bearing bar: 25 × 2 mm	34 × 11 mm	500 × 1000 mm	25 × 2 mm
Galvanized pressed steel grating Mesh size: 34 × 11 mm Size: 1000 × 1000 mm Bearing bar: 30 × 3 mm	34 × 11 mm	1000 × 1000 mm	30 × 3 mm
Galvanized pressed steel grating, serrated S5 Mesh size: 34 × 11 mm Size: 1000 × 1000 mm Bearing bar: 30 × 2 mm	34 × 11 mm	1000 × 1000 mm	30 × 2 mm
Galvanized pressed steel grating, serrated S5 Mesh size: 34 × 11 mm Size: 500 × 1000 mm Bearing bar: 25 × 2 mm	34 × 11 mm	500 × 1000 mm	25 × 2 mm
Galvanized pressed steel grating Mesh size: 34 × 33 mm Size: 500 × 1000 mm Bearing bar: 50 × 4 mm	34 × 33 mm	500 × 1000 mm	50 × 4 mm
Black pressed steel grating Mesh size: 34 × 11 mm Size: 3000 × 1000 mm Bearing bar: 25 × 2 mm	34 × 11 mm	3000 × 1000 mm	25 × 2 mm
Black pressed steel grating Mesh size: 34 × 11 mm Size: 3000 × 1000 mm Bearing bar: 30 × 2 mm	34 × 11 mm	3000 × 1000 mm	30 × 2 mm
Black pressed steel grating Mesh size: 34 × 11 mm Size: 3000 × 1000 mm Bearing bar: 30 × 3 mm	34 × 11 mm	3000 × 1000 mm	30 × 3 mm

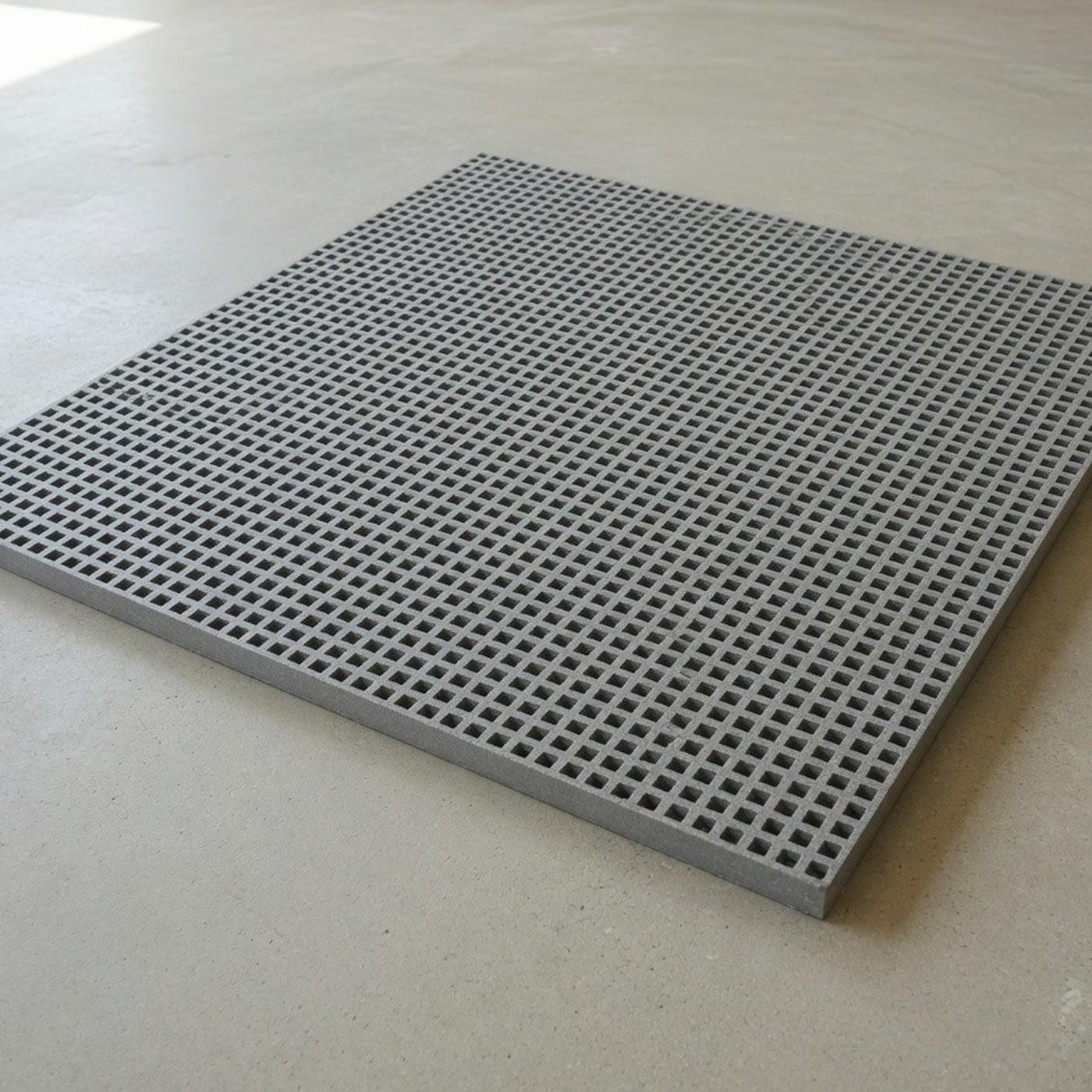

Glassfiber reinforced plastic grating ISO 30 Mesh size: 19 × 19 mm Size: 1000 × 1000 mm Bearing bar: 38 × 38 mm	19 × 19 mm	1000 × 1000 mm	38 × 38 mm
Glassfiber reinforced plastic grating ISO 30 Mesh size: 38 × 38 mm Size: 1000 × 1000 mm Bearing bar: 30 × 7 mm	38 × 38 mm	1000 × 1000 mm	30 × 7 mm
Glassfiber reinforced plastic grating ISO 38 Mesh size: 38 × 38 mm Size: 1000 × 1000 mm Bearing bar: 38 × 7 mm	38 × 38 mm	1000 × 1000 mm	38 × 7 mm
Glassfiber reinforced plastic grating ISO 30 Mesh size: 38 × 38 mm Size: 3000 × 1000 mm Bearing bar: 30 × 7 mm	38 × 38 mm	3000 × 1000 mm	30 × 7 mm
Glassfiber reinforced plastic grating ISO 38 Mesh size: 38 × 38 mm Size: 3000 × 1000 mm Bearing bar: 38 × 7 mm	38 × 38 mm	3000 × 1000 mm	38 × 7 mm
Glassfiber reinforced plastic grating ISO 30 Mesh size: 38 × 38 mm Size: 3660 × 1220 mm Bearing bar: 30 × 7 mm	38 × 38 mm	3660 × 1220 mm	30 × 7 mm
Glassfiber reinforced plastic grating ISO 38 Mesh size: 38 × 38 mm Size: 3660 × 1220 mm Bearing bar: 38 × 7 mm	38 × 38 mm	3660 × 1220 mm	38 × 7 mm

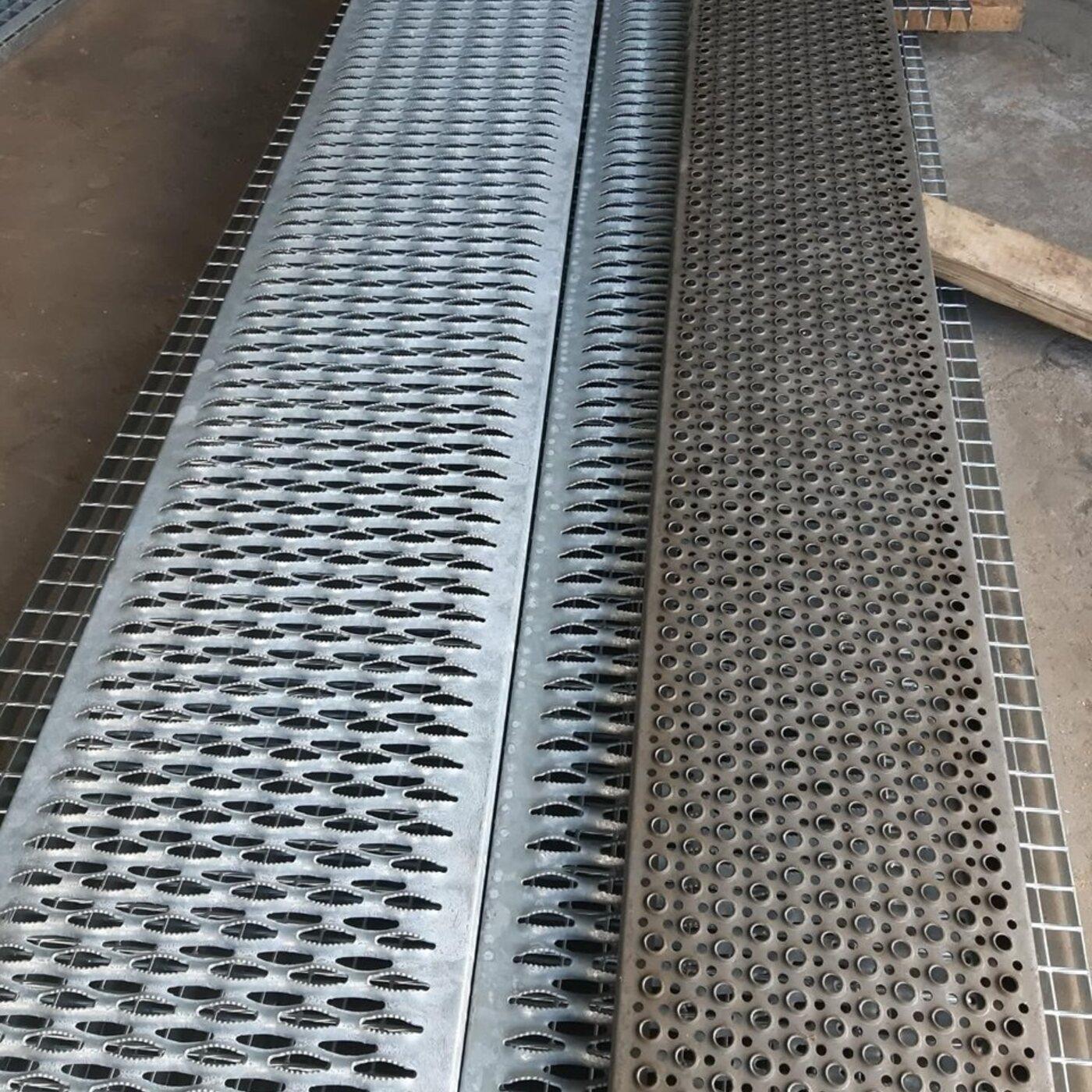

Galvanized steel platform grating Size: 300 × 6000 mm	–	300 × 6000 mm	–
Galvanized steel platform grating Size: 400 × 6000 mm	–	400 × 6000 mm	–
Black steel platform grating Size: 180 × 6000 mm	–	180 × 6000 mm	–
Galvanized steel platform grating Size: 300 × 6000 mm	–	300 × 6000 mm	–
Black steel platform grating Size: 300 × 6000 mm	–	300 × 6000 mm	–
Fixing element set for galvanized grating ZN	–	–	–
Upper part of fixing element ZN	–	–	–
Upper part of fixing element (round) ZN	–	–	–
Fixing element set for galvanized grating joint ZN	–	–	–
Fixing element set for grating AISI 304	–	–	–
Upper part of fixing element AISI 304	–	–	–
Fixing elemet type M (AISI 316) for GRP Grating 38×38 mm Size: 38 × 38 mm	–	38 × 38 mm	–
Fixing elemet type M (AISI 316) for GRP Grating 19×19 mm Size: 19 × 19 mm	–	19 × 19 mm	–
Fixing element set for GRP grating	–	–	–
Fixing element set for GRP grating joint	–	–	–

Where it is used

Industrial floors and platforms

Walkways in production buildings, machine maintenance balconies and intermediate platforms, where the floor has to carry people and equipment and let spilled liquids through.

Channel covers and drains

Covers for stormwater and process channels. The grating carries traffic load and stays openable for maintenance.

Walkways and stair landings

External walkways, rooftop maintenance routes and intermediate stair landings, where snow and water have to fall through.

Guards and screens

Screens for technical equipment, covers over ventilation openings and facade elements, where air permeability and mechanical protection are needed at once.

How to choose

SP: Welded grating. The bearing bars and cross rods are welded together.

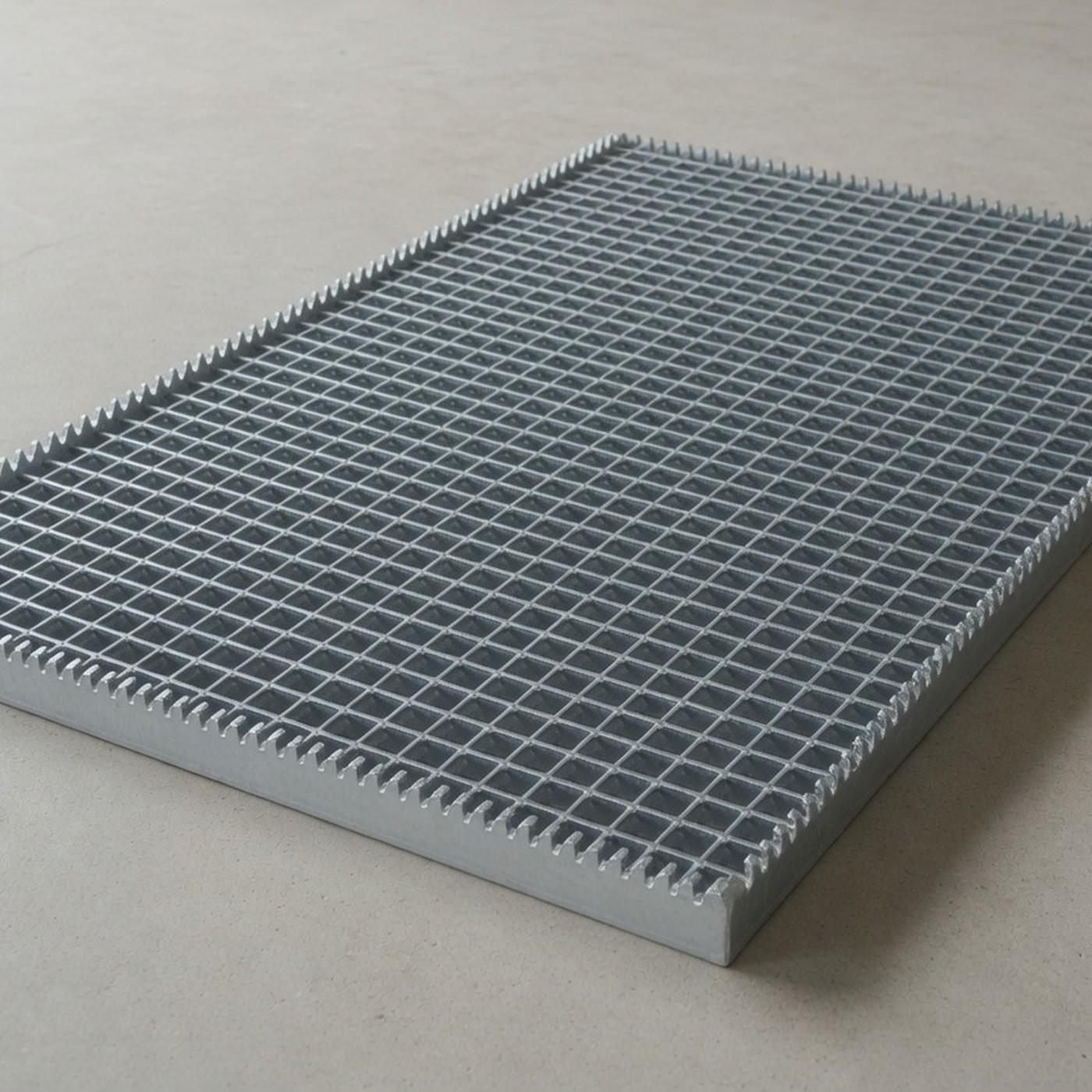

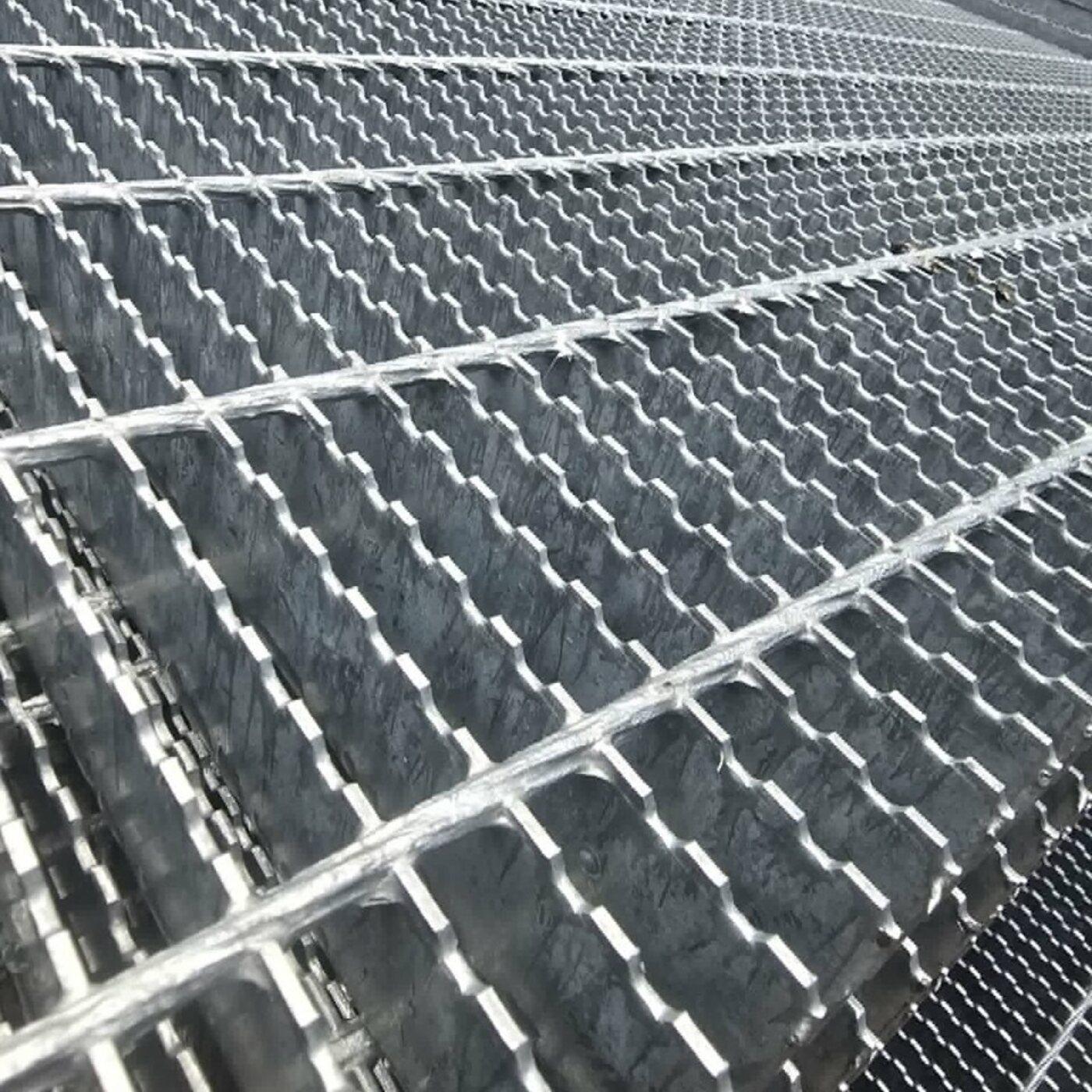

S5 / serrated: A toothed top edge on the bearing bar, giving extra slip resistance.
Bearing bar: The load-carrying vertical flat steel, whose height and thickness set the capacity.
Mesh size: The clear opening between bearing bars and cross rods, e.g. 34 × 38 mm.
Fv: Uniformly distributed load, daN/m². Roughly kilograms per square metre.
Fp: Point load on a 200 × 200 mm patch, daN.

Mesh size

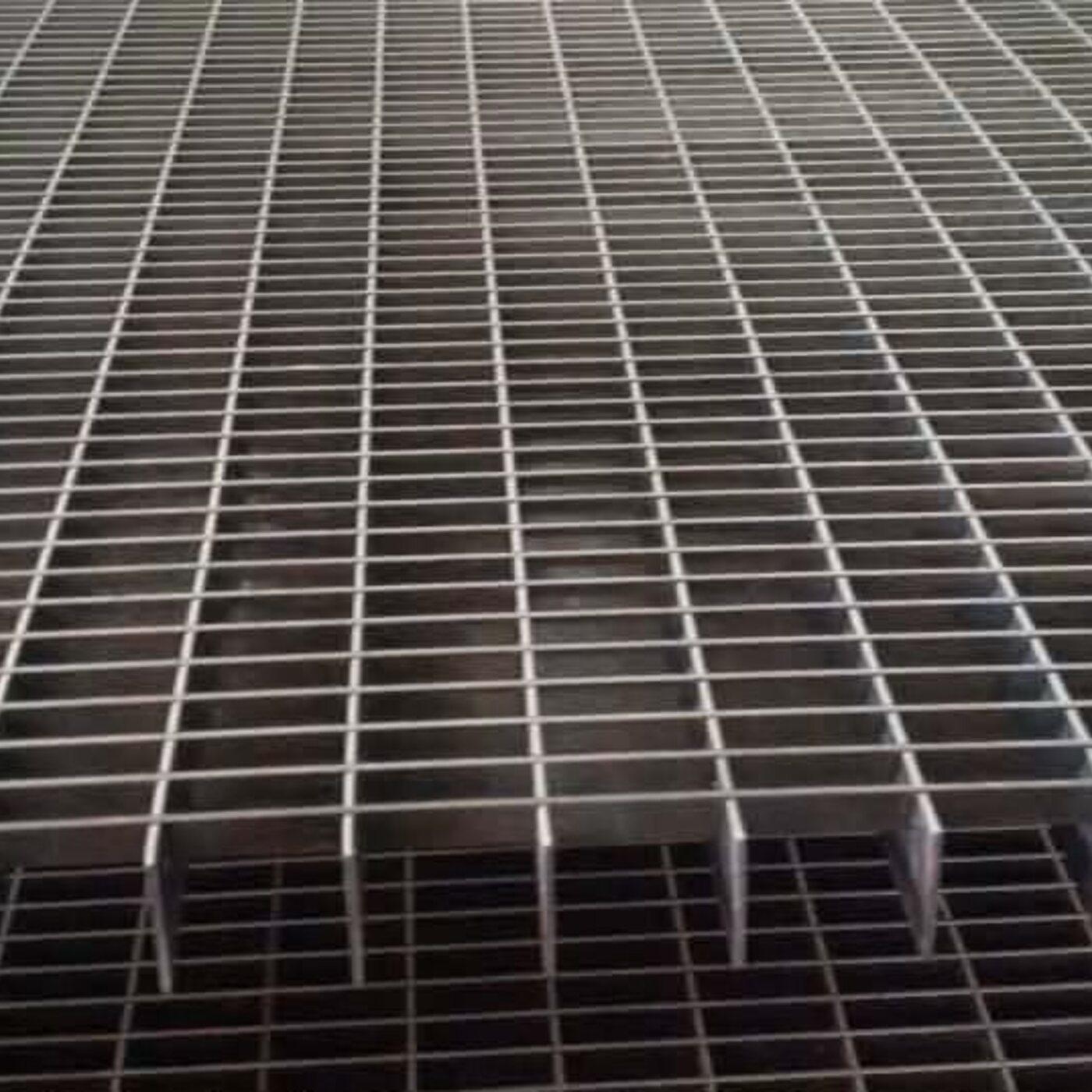

The mesh size (34 × 38 mm, say) determines how much falls through and how comfortable the grating is to walk on. A smaller mesh is easier underfoot and safer for narrow heels; a larger mesh passes water and dirt more readily.

Bearing bar height and thickness

The bearing bar dimension (30 × 3 mm, say) determines the load capacity. The taller the bar and the shorter the span between supports, the more load the grating carries. The load table (the button next to the quote request) gives Fv and Fp for each bar and span.

Material and finish

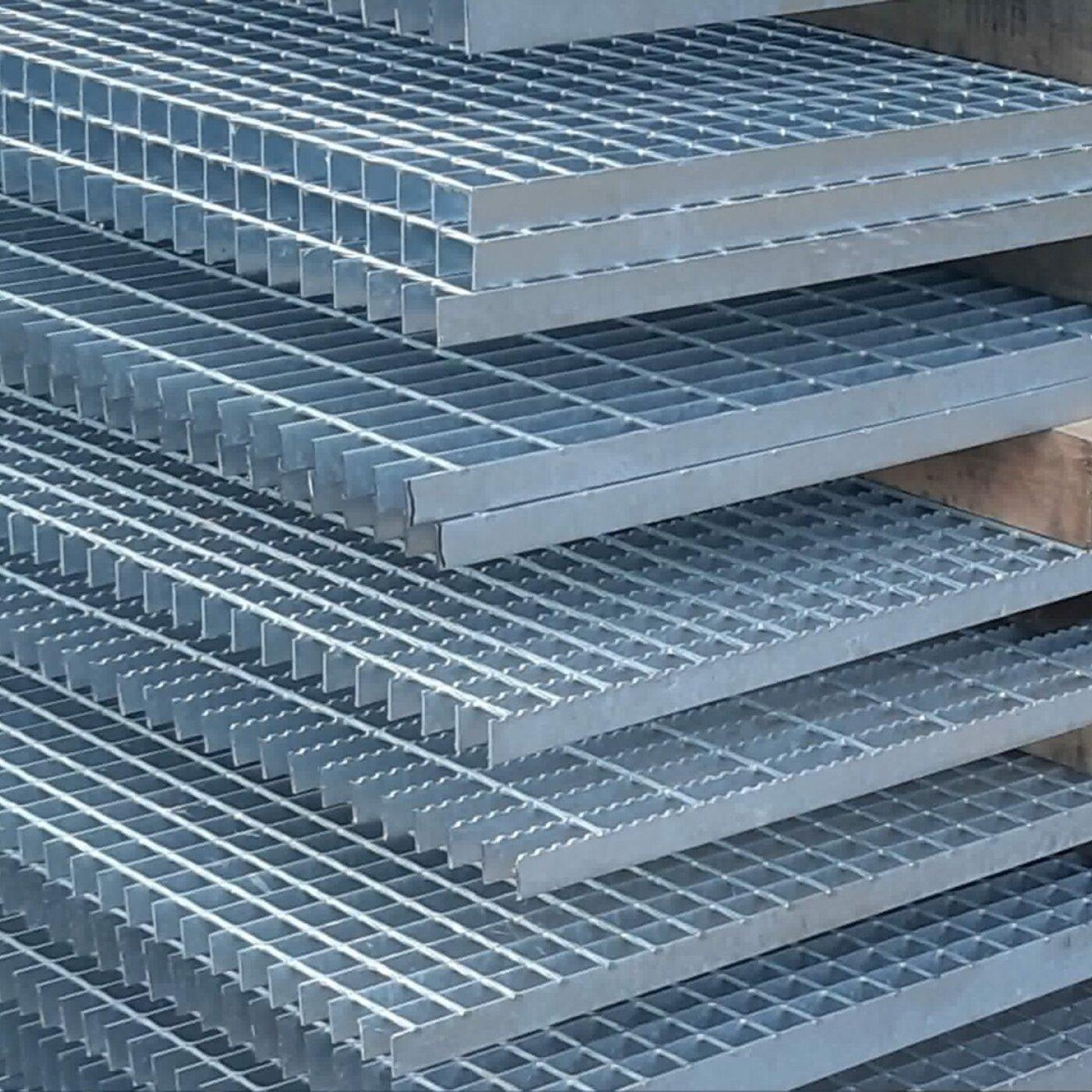

Hot-dip galvanized black steel suits most outdoor and industrial conditions. Stainless AISI 304 is chosen for food industry and damp environments, AISI 316 for coastal and chloride-rich ones.

Edge finish

A cut grating has to be banded at the edge so the cross rods stay in place. We include the banding in the quote when the product is cut to size.

Frequently asked questions

How do I choose the load capacity of a grating?

Capacity depends on the height and thickness of the bearing bar and on the span between supports. Open the load table next to the quote request, pick a bar and a span, and it shows Fv and Fp. If the load or the support is unusual, say so in the request.

Are gratings cut to size?

Yes. We cut gratings to the size you need and band the cut edge so the cross rods stay in place. Cutting is included in the quote.

What is the difference between a galvanized and a stainless grating?

A hot-dip galvanized grating costs less and suits most outdoor and industrial conditions. A stainless grating is chosen when the environment is damp, chemically aggressive, or when it is a food industry setting.

Related categories

Didn't find the size you need?

The catalogue shows what we keep in stock. We cut to size, and we also order in what is not on the list. Write and tell us what you need.

Send the request +372 5620 7771 Email
